ditchman

re-building a treasured knife

Recommended Posts

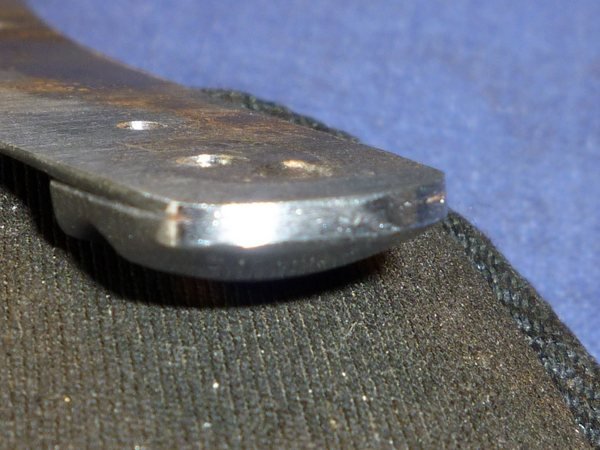

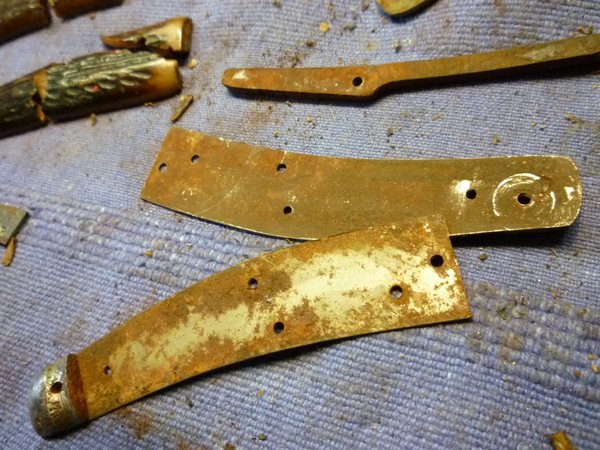

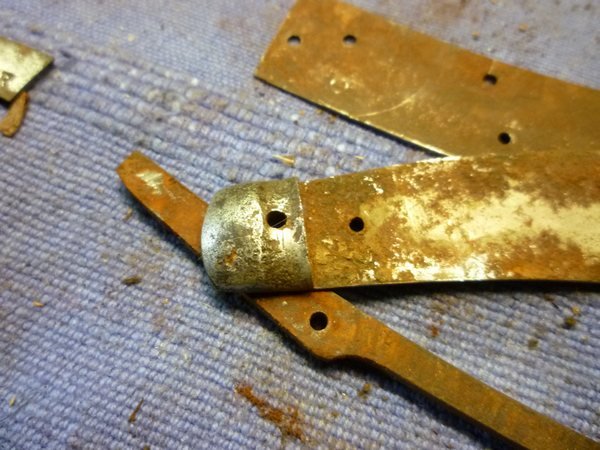

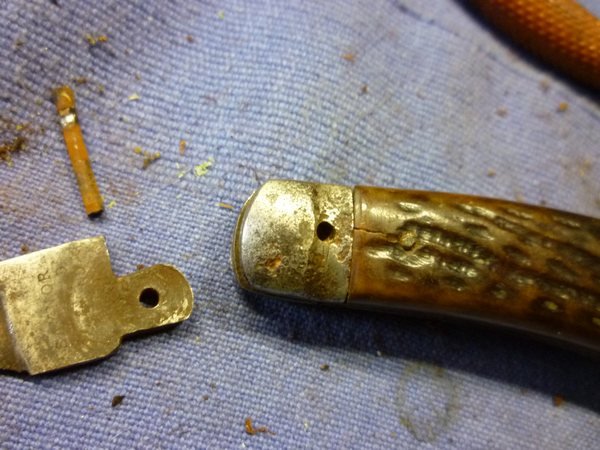

after i post this thread you will all suddenly realise that i am a hopeless lost case...in short a muppet..........these sort of disasters really float my boat....the knife was and is very special to someone and they didnt want to throw it away...so they sent it to me for a larf.........................i will post later as i need to do some shoppin..............

old knife 001tn_.JPG

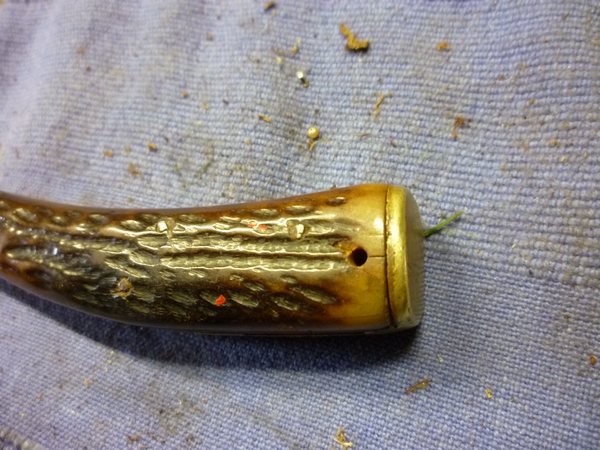

old knife 002tn_.JPG

old knife 003tn_.JPG

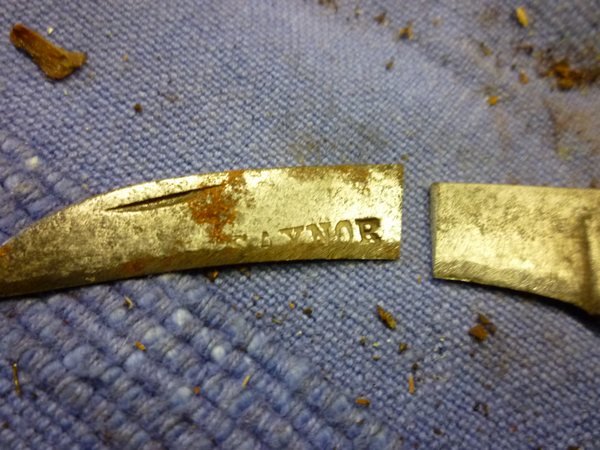

old knife 004tn_.JPG

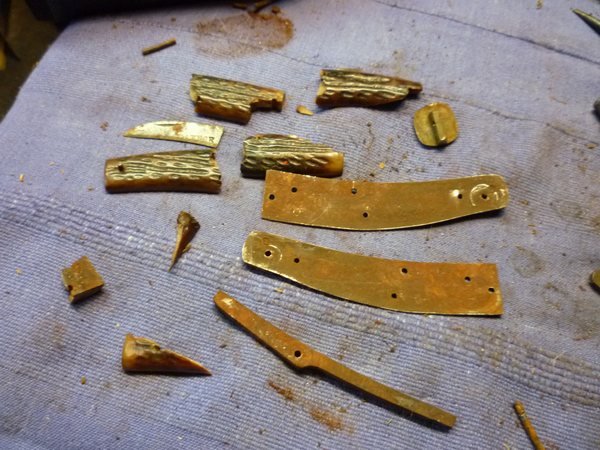

old knife 005tn_.JPG

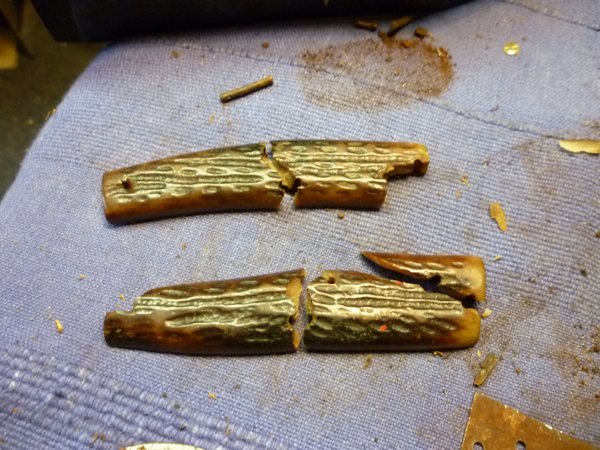

old knife 006tn_.JPG

old knife 007tn_.JPG

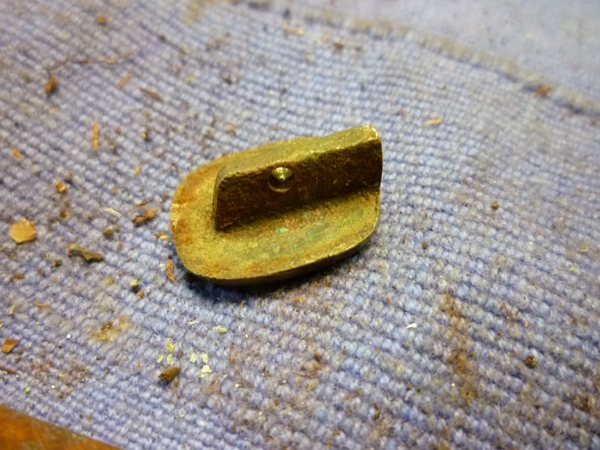

old knife 008tn_.JPG

old knife 009tn_.JPG

old knife 010tn_.JPG

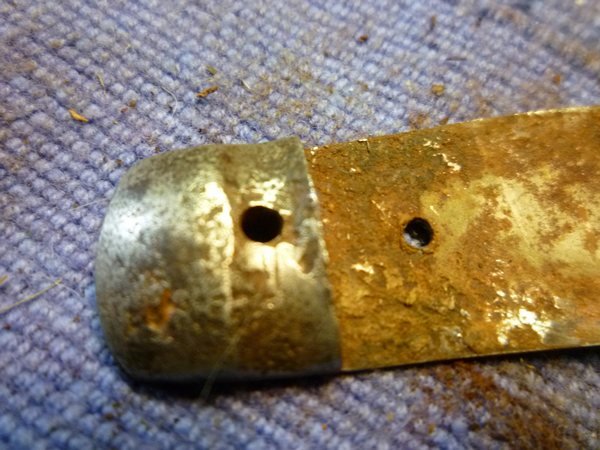

old knife 011tn_.JPG

old knife 012tn_.JPG

  • Like 1

Share this post


Link to post
Share on other sites

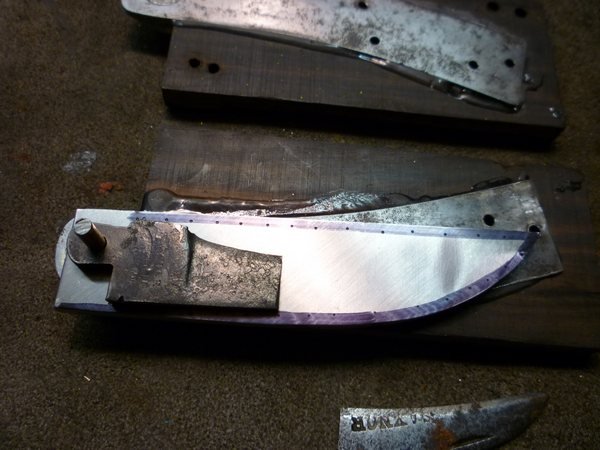

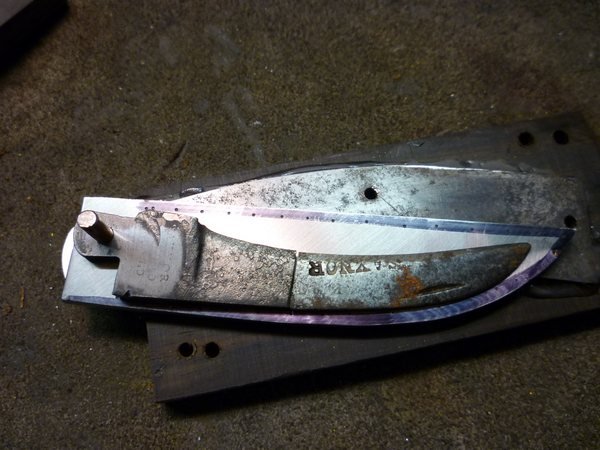

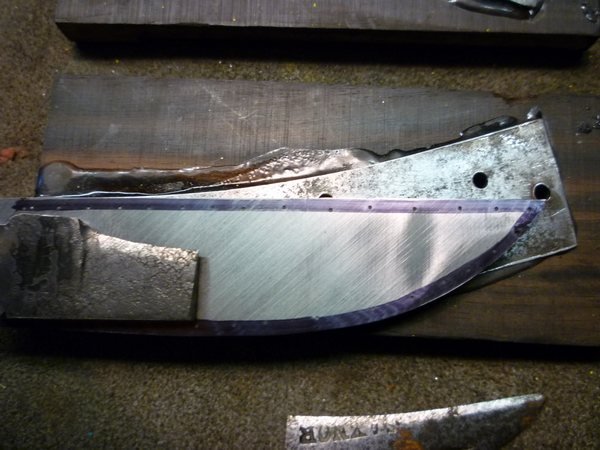

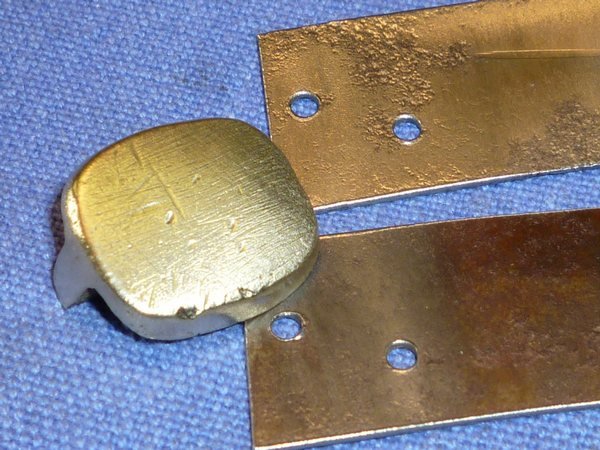

cant quite get them in order....but you get the idea.....my mate dave sent me a bit of D2....which is nice to work ...nice and soft....and when you harden it you bring it to temperature and let air harden....you dont quench it in water or oil....you get very little wharp using that spec steel....then it was annealed later as i will show............



ditch

d2 blade new 001tn_.JPG

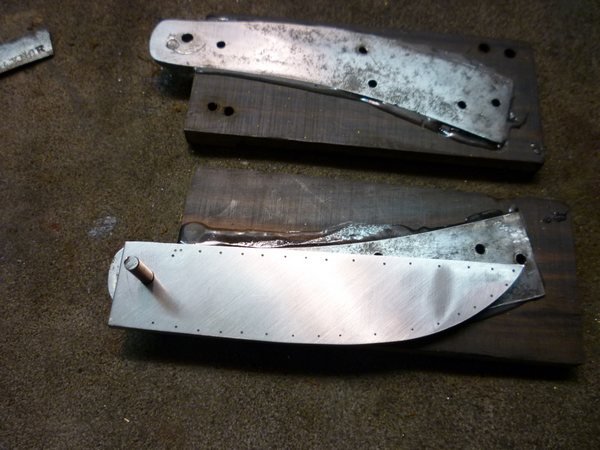

d2 blade new 002tn_.JPG

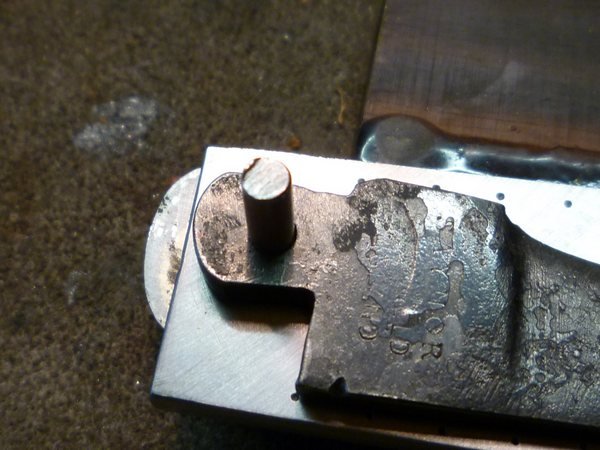

d2 blade new 003tn_.JPG

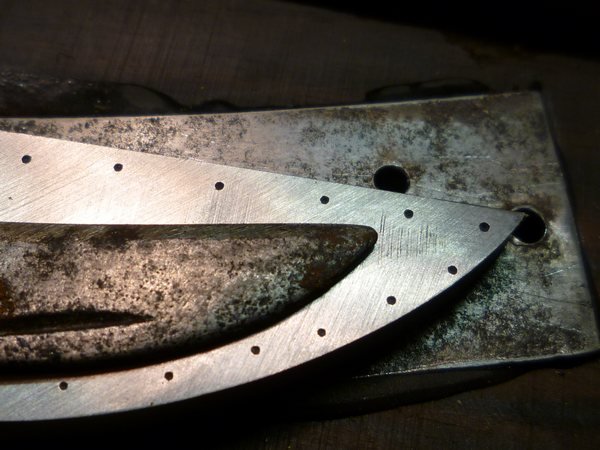

d2 blade new 004tn_.JPG

d2 blade new 005tn_.JPG

d2 blade new 006tn_.JPG

d2 blade new 007tn_.JPG

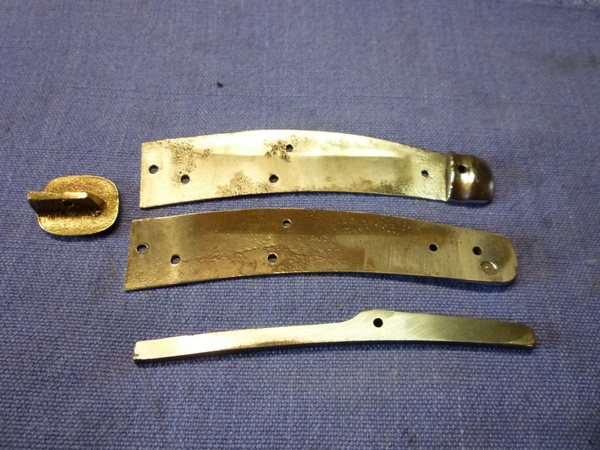

old knife 013tn_.JPG

old knife 014tn_.JPG

old knife 015tn_.JPG

old knife 016tn_.JPG

old knife 017tn_.JPG

  • Like 2

Share this post


Link to post
Share on other sites



D2 needs a long soak at temp to dissolve carbides and distribute carbon. The carbides are big and spheroidized. Otherwise you get a weak and uneven structure. It needs 30-35 minutes at temp for the carbon to dissolve and even out. You don't need to worry about grain growth from a long soak in D2, there are so many things in there pinning grain boundaries you could soak it an hour and the only problem would be too much carbon in solution, not grain growth.

Unless you have two ovens I suggest skipping the presoak (it doesn't do much for a knife) and going directly into an oven at full temp. This is because cheap knifemakers ovens tend to over heat areas in the oven and on the blade due to radiant heat from exposed coils so close to the work during an extended ramp up.

A simple HT for D2 that works pretty reliably:
Soak at 1880 30 min
plate quench to under 400F
Straighten any little bends with gloved hands while still hot if possible
go directly into subzero
temper twice in the range of 400-500. You can fixture to correct any bends during temper

  • Like 1

Share this post


Link to post
Share on other sites

cheers............it didnt get a soak............just into the forge long and slow...and air cooled...then annealed as i said.....which has worked out fine.......its had a years hard use since i finished it...no probs yet

prefer to work with O1 tho......

  • Like 1

Share this post


Link to post
Share on other sites

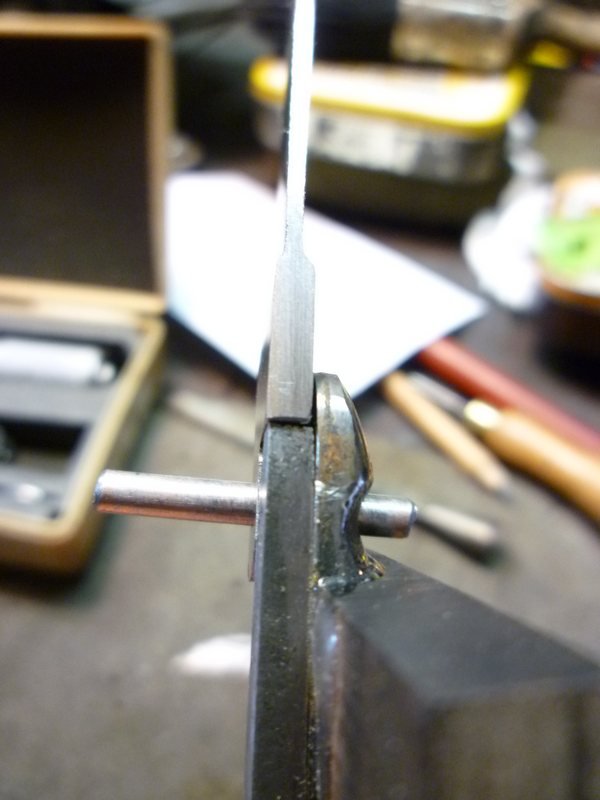

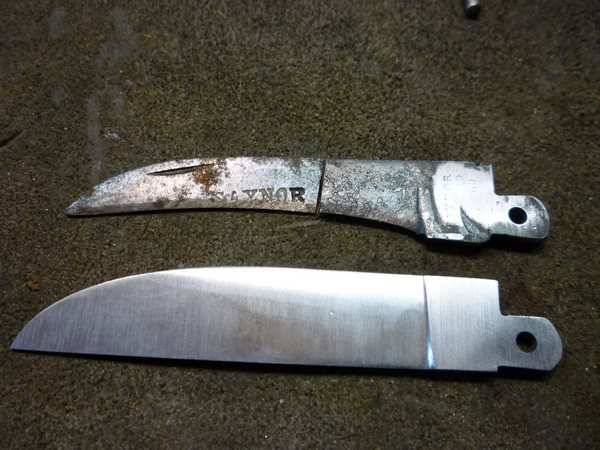

cut and shaped the blade on my old slow running 1930 linnisher...gave it a full scandi cut/grind both sides............and started to fit ebony scales to it..........

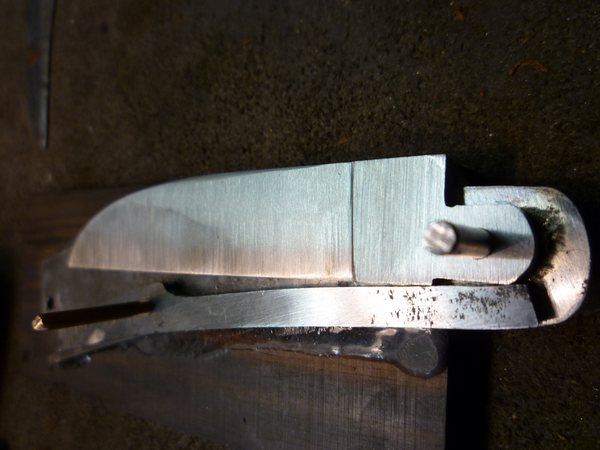

blade 001tn_.JPG

blade 002tn_.JPG

blade 003tn_.JPG

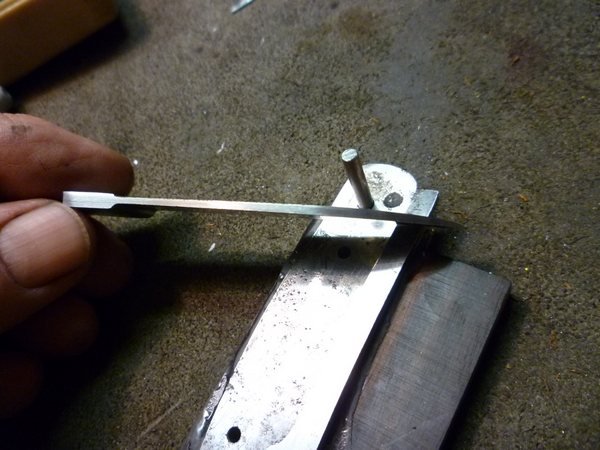

blade 004tn_.JPG

blade 005tn_.JPG

blade 006tn_.JPG

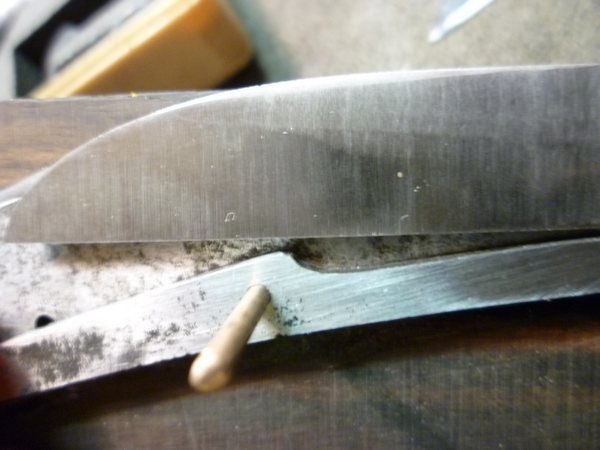

blade 007tn_.JPG

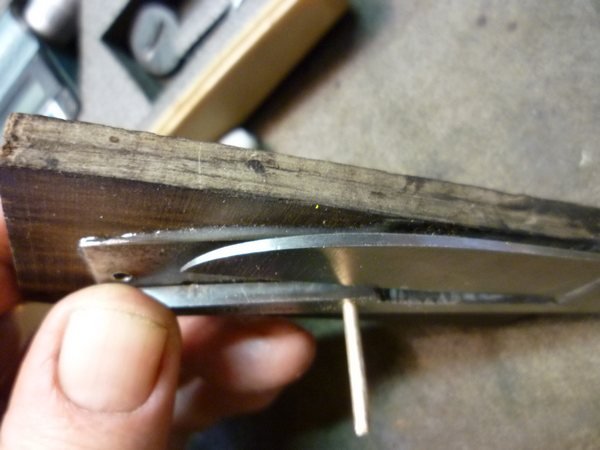

blade 008tn_.JPG

blade 009tn_.JPG

  • Like 5

Share this post


Link to post
Share on other sites

What a wonderful project!!!

A knife from the Golden age of Sheffield knifemaking that definetly deserves a new life.

A pity you couldn't safe the stag scales but ebony is historic correct, too.

Was this a rope knife or pruner? Or cotton knife?

Regards

Nicolas

Share this post


Link to post
Share on other sites

Btw. The brand seems to be

W. SAYNOR SHEFFIELD



 W Saynor & Co., active 1858-1965


Edited by spsurfer
  • Like 1

Share this post


Link to post
Share on other sites
36 minutes ago, spsurfer said:

What a wonderful project!!!

A knife from the Golden age of Sheffield knifemaking that definetly deserves a new life.

A pity you couldn't safe the stag scales but ebony is historic correct, too.

Was this a rope knife or pruner? Or cotton knife?

Regards

Nicolas

it was used as a shepards knife paring hoofs ....as it is still being used for that purpose this very day....i rekon it must be nearly 100 years old......the horn was totally knackered as you can see..........

  • Like 1

Share this post


Link to post
Share on other sites
30 minutes ago, spsurfer said:

Btw. The brand seems to be

W. SAYNOR SHEFFIELD



 W Saynor & Co., active 1858-1965


now that is seriously interesting ...cheers for that .........

  • Like 1

Share this post


Link to post
Share on other sites

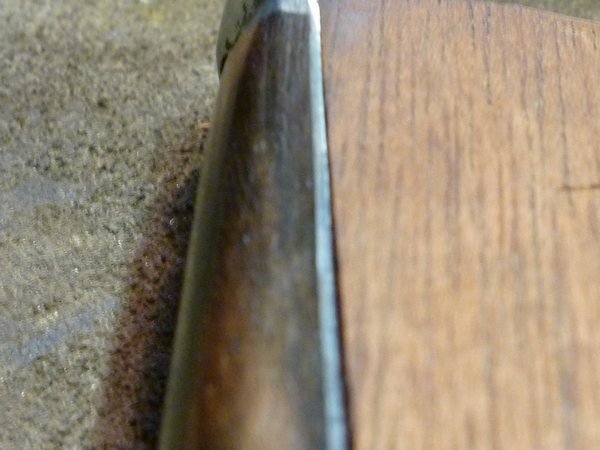

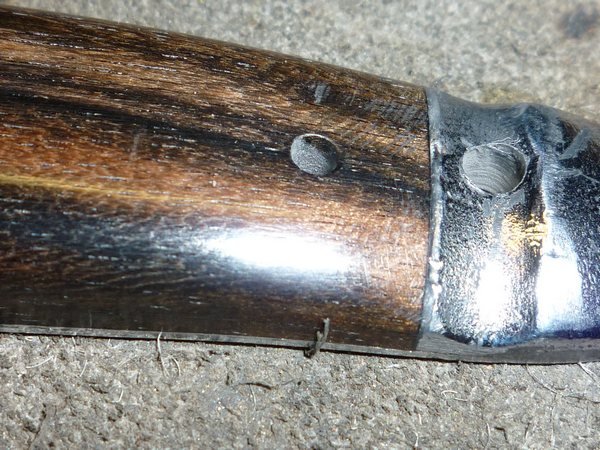

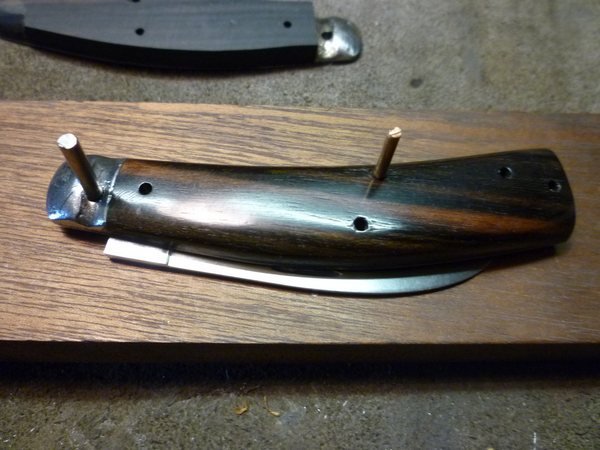

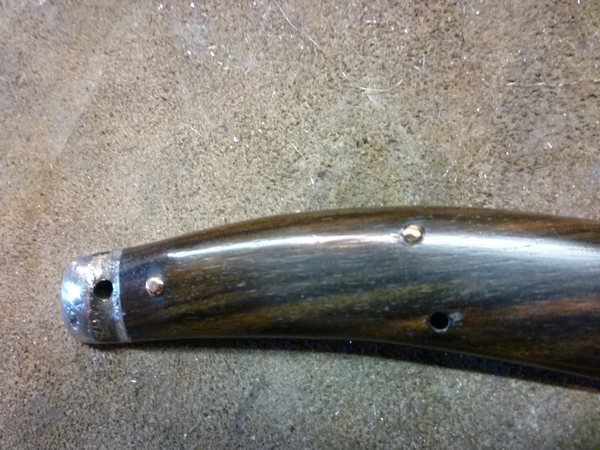

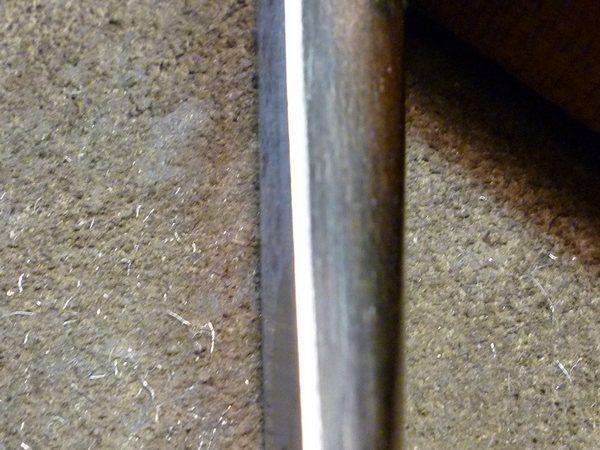

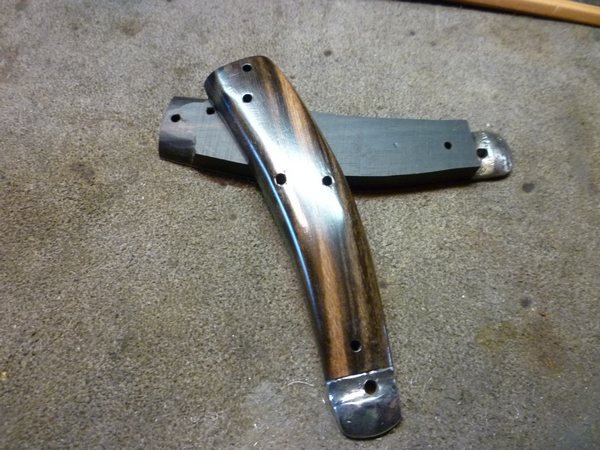

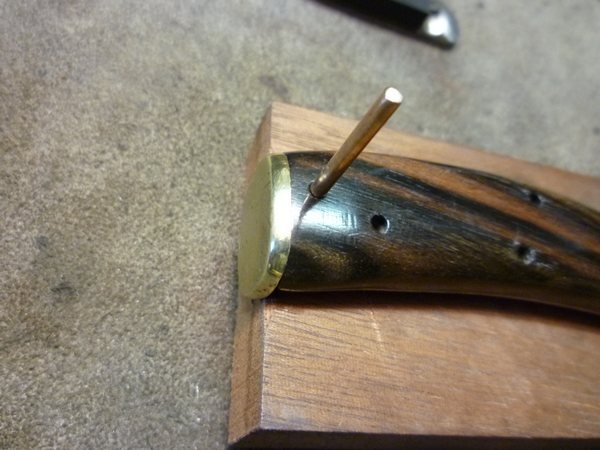

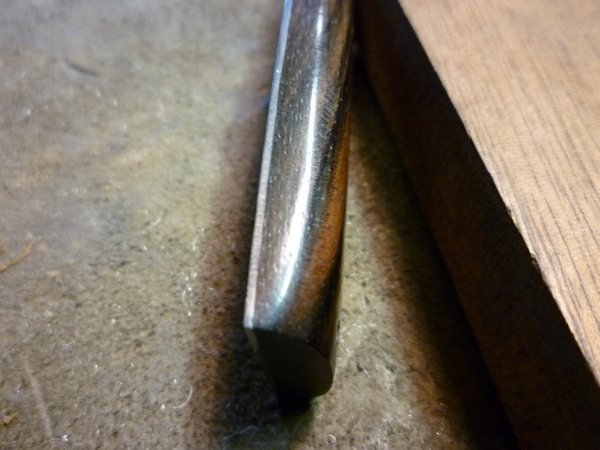

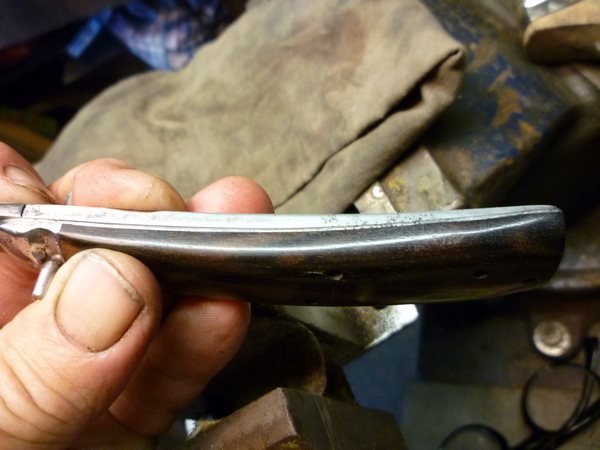

starting to "match" it together now...getting the metal to wood fit right...im using bronze pins for the scales and steel for the spring fulcrum point and the blade hinge........

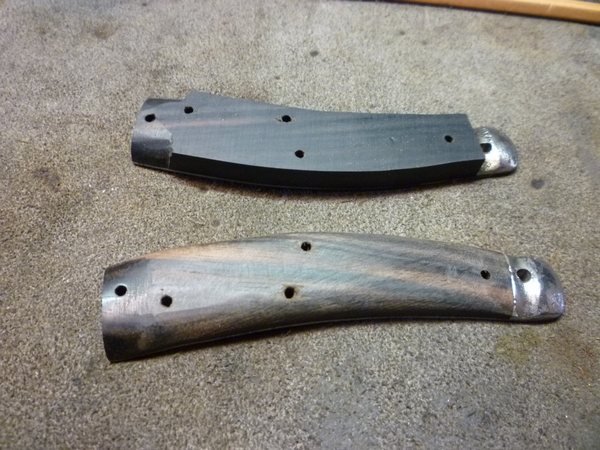

pol&shape 001tn_.JPG

pol&shape 002tn_.JPG

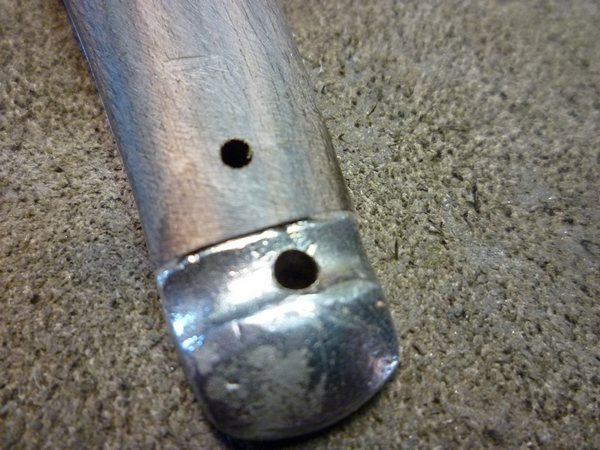

pol&shape 003tn_.JPG

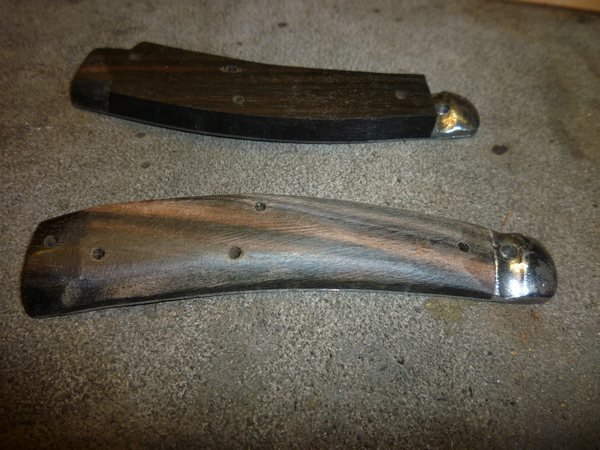

pol&shape 004tn_.JPG

pol&shape 005tn_.JPG

pol&shape 006tn_.JPG

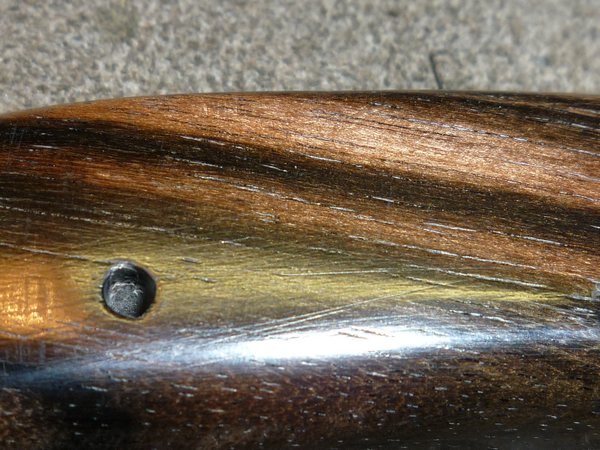

pol&shape 007tn_.JPG

pol&shape 014tn_.JPG

pol&shape 009tn_.JPG

pol&shape 010tn_.JPG

pol&shape 011tn_.JPG

pol&shape 012tn_.JPG

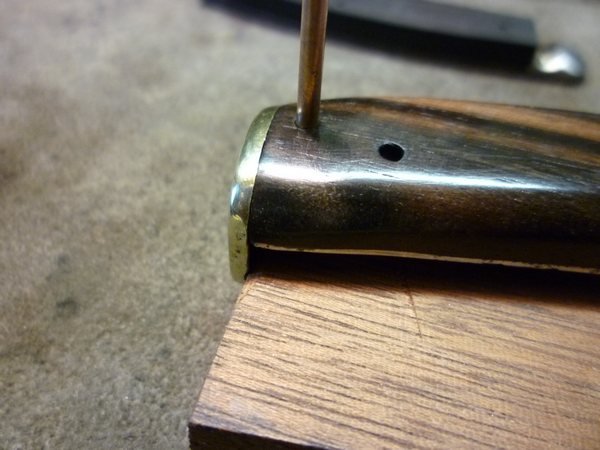

pol&shape 013tn_.JPG

pol&shape 015tn_.JPG

pol&shape 016tn_.JPG

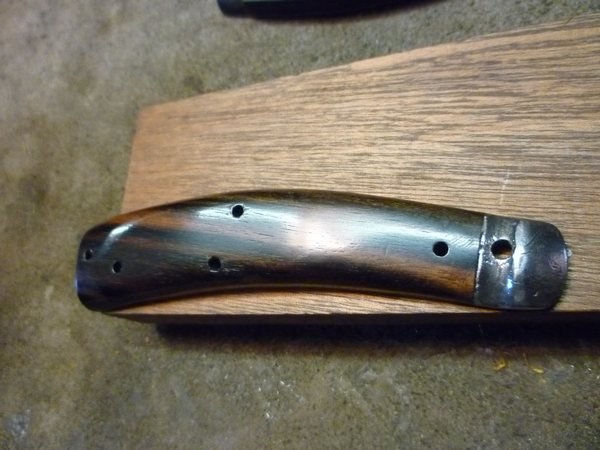

pol&shape 017tn_.JPG

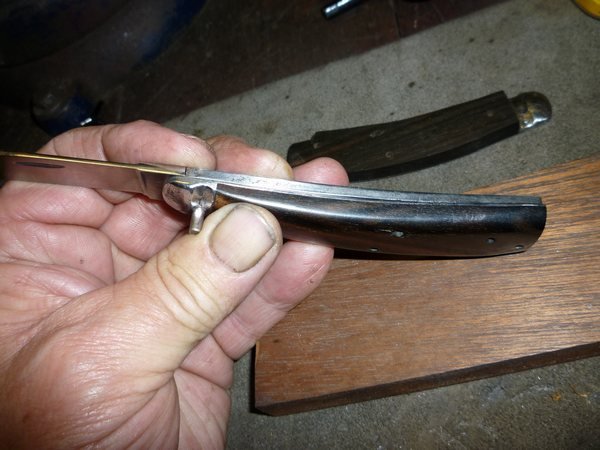

pol&shape 018tn_.JPG

pol&shape 019tn_.JPG

pol&shape 020tn_.JPG

pol&shape 021tn_.JPG

  • Like 6

Share this post


Link to post
Share on other sites

Will be as good as new with added character. I would not polish out the rust pits in the bolsters.



Share this post


Link to post
Share on other sites
1 minute ago, spsurfer said:

Will be as good as new with added character. I would not polish out the rust pits in the bolsters.



quite right............ive left the pitting in...and ontop of the spring....👍

  • Like 1

Share this post


Link to post
Share on other sites

That’s a lovely job and a lovely project, nothing but respect for that level of detail 👍👍👍👍

  • Like 1

Share this post


Link to post
Share on other sites
46 minutes ago, Greyman said:

That’s a lovely job and a lovely project, nothing but respect for that level of detail 👍👍👍👍

well you know what they say "idle hands will mistrief make ".............

christ my eyes are going funny ...just got so many snaps of stuff ive done over the years....................

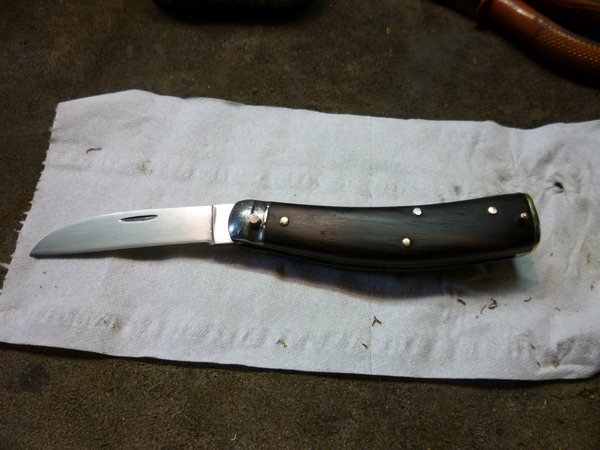

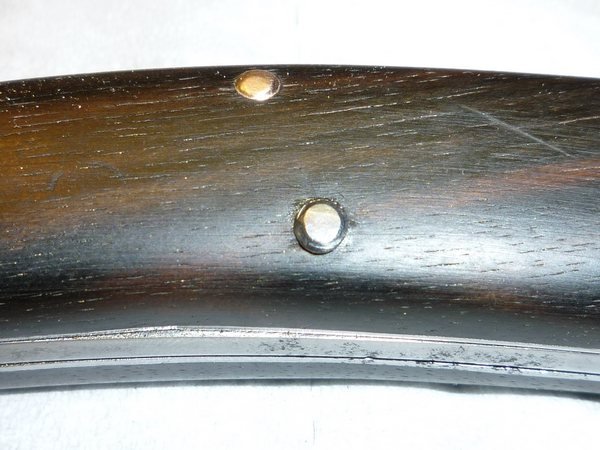

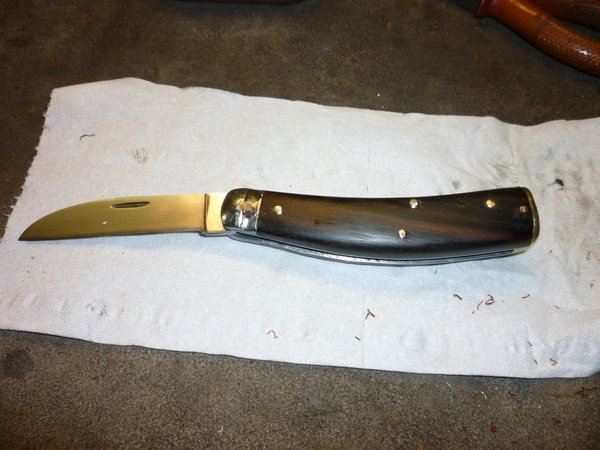

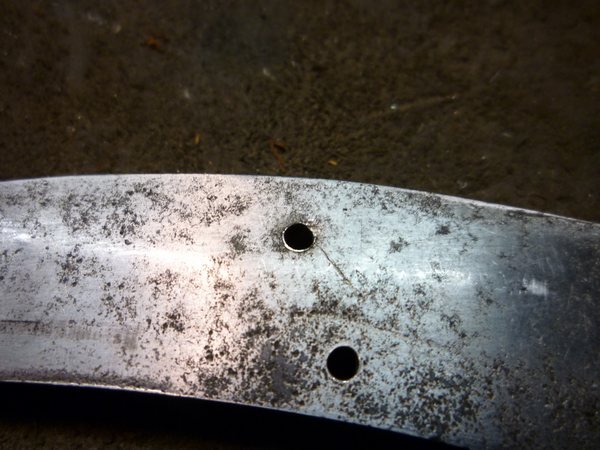

anyway thats how it ended up ...

cheers for the comments 👍

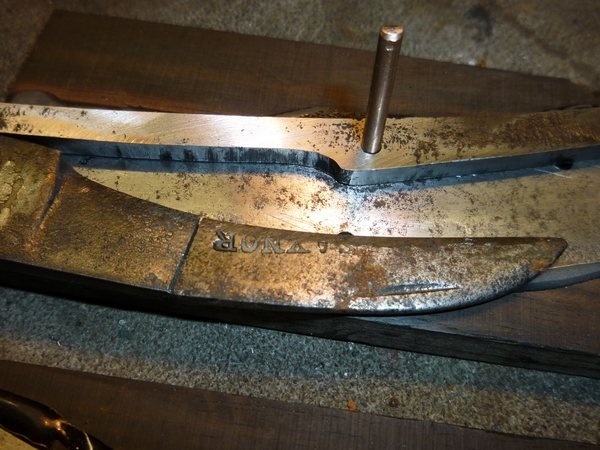

riverts 004tn_.JPG

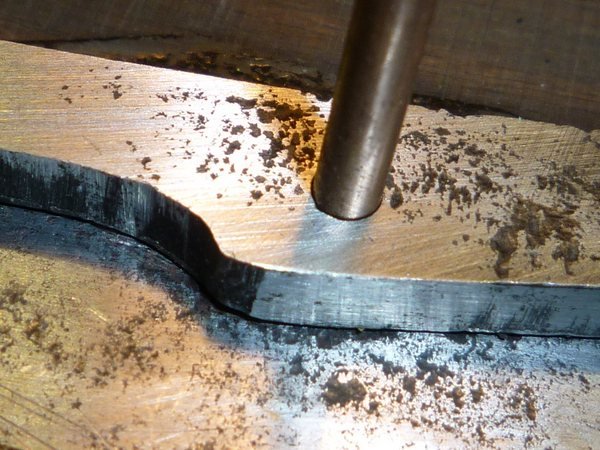

riverts 005tn_.JPG

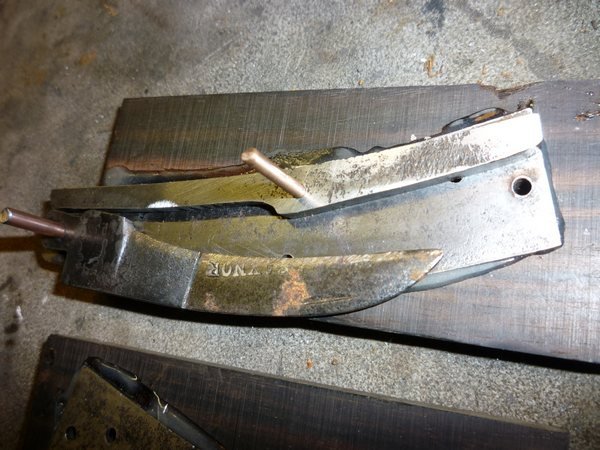

riverts 006tn_.JPG

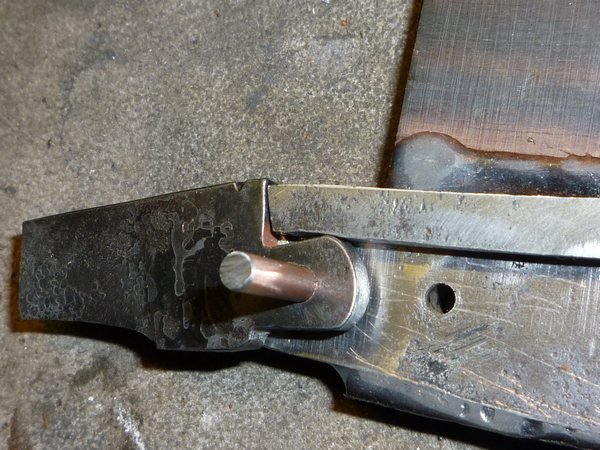

riverts 007tn_.JPG

rivet scales 001tn_.JPG

rivet scales 002tn_.JPG

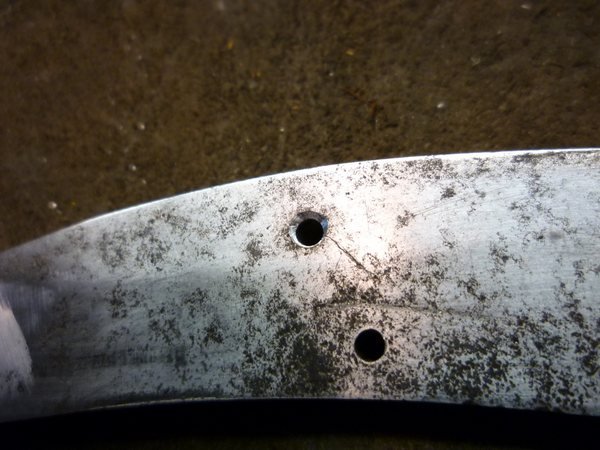

rivet scales 003tn_.JPG

rivet scales 004tn_.JPG

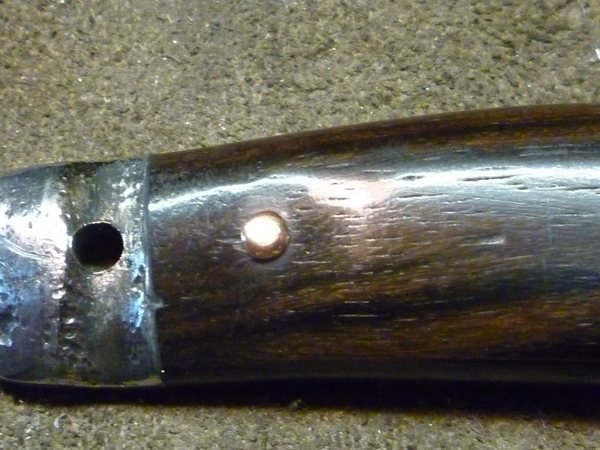

rivet scales 005tn_.JPG

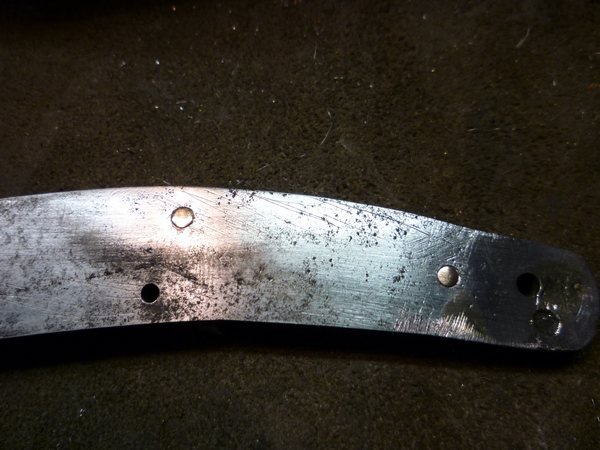

rivet scales 006tn_.JPG

rivet scales 007tn_.JPG

hardening &temper 001tn_.JPG

hardening &temper 002tn_.JPG

hardening &temper 003tn_.JPG

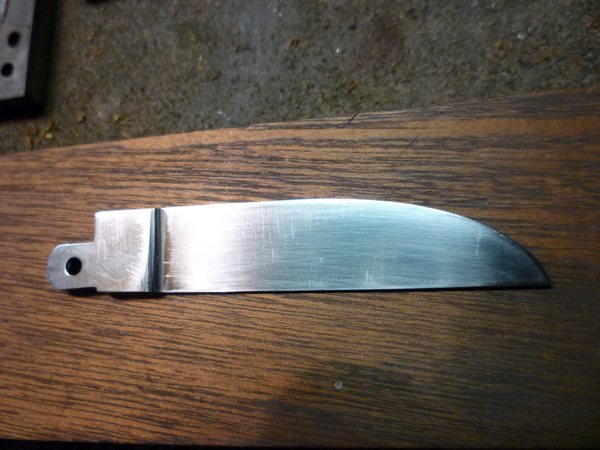

hardening &temper 004tn_.JPG

together 001tn_.JPG

together 002tn_.JPG

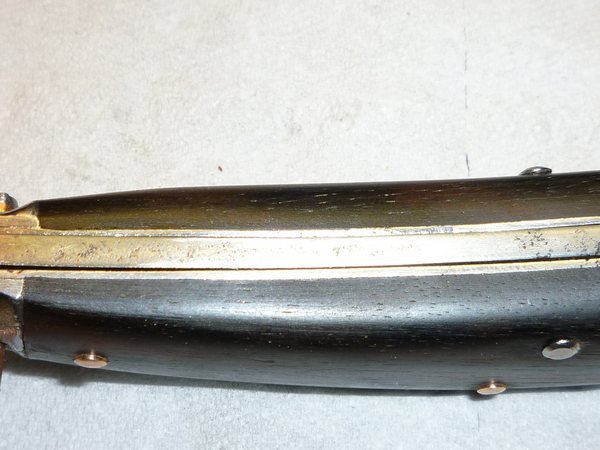

together 003tn_.JPG

together 004tn_.JPG

sypathetic 002tn_.JPG

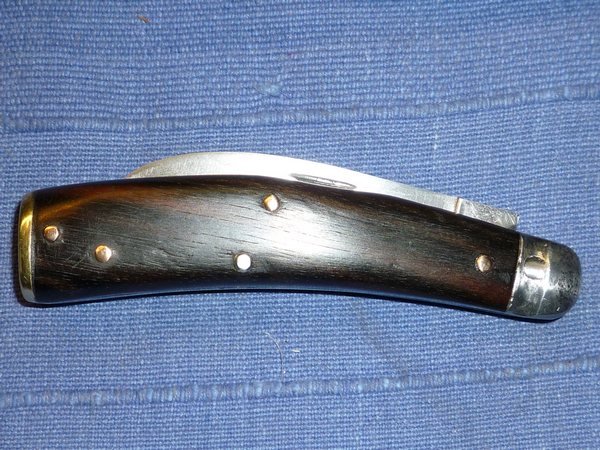

sypathetic 011tn_.JPG

Edited by ditchman
  • Like 9

Share this post


Link to post
Share on other sites

That is brilliant workmanship - you are very skilled - I love it!

I would be absolutely delighted with that result if I was the owner of that knife....I'd love to see the expression on their  face when you produce it.

Share this post


Link to post
Share on other sites
