80K Sling Swivels Size.

[king 12,015]

Can anyone tell me what size barrel fitting for an 80k to fit a sling.

I've looked about but there's so many different sizes in mm.im a bit baffled.

And does it need a rubber insert to protect the barrel from scratches.

Cheers king.

[walshie 2,804]

Measure it with calipers.



Failing that, have a look at this site. http://www.ant-supplies.uk/gun-sling-fittings/rifle-split-band-swivel-bases.html

[king 12,015]

That's the info I need walshie spot on cheers.

[Jonjon79 13,358]

Insulation tape around the barrel will stop the band from scratching

[rizla1 122]

baught some for my and you need 16mm to fit the barrel

[king 12,015]

baught some for my and you need 16mm to fit the barrel

Cheers rizla.

I will pick up a black roll from the shop Jon. Cheers.

[j j m 6,607]

i need to buy another one,since i had shroude fitted my old one is to small

[king 12,015]

Right bought a bisley 16mm set of swivels.

Can you recommend the best placement for both the barrel 1 and were to drill the hole for the screw part.

Cheers king.

[Jonjon79 13,358]

Right bought a bisley 16mm set of swivels.

Can you recommend the best placement for both the barrel 1 and were to drill the hole for the screw part.

Cheers king.

The best place for the barrel swivel is close to the stock end so that you have less chance of pulling the barrel and opening the breech while using the sling. You just need to make sure that you can still cock the rifle without the swivel interfering with the stock.



I usually put the rear stud 2 - 3 inches in from the butt, depending on stock shape.

..... Mark with a pencil first and, have a good look at it to make sure it's central. Then make an indent with something like a nail. Then drill a pilot hole.

When I drill the final hole, I make sure that the drill bit is slightly smaller than the sling stud.

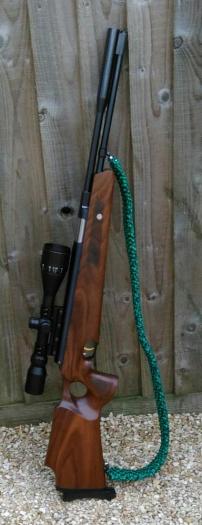

The picture below isn't a break barrel but, it should give some idea

[king 12,015]

That's spot on Jon Cheers.

A picture is a thousand words or what ever the saying goes lol.

I will get the swivels Fitted now in the shed.

[Jonjon79 13,358]

You're welcome mate - good luck with it



Stick a picture up when you're done

[king 12,015]

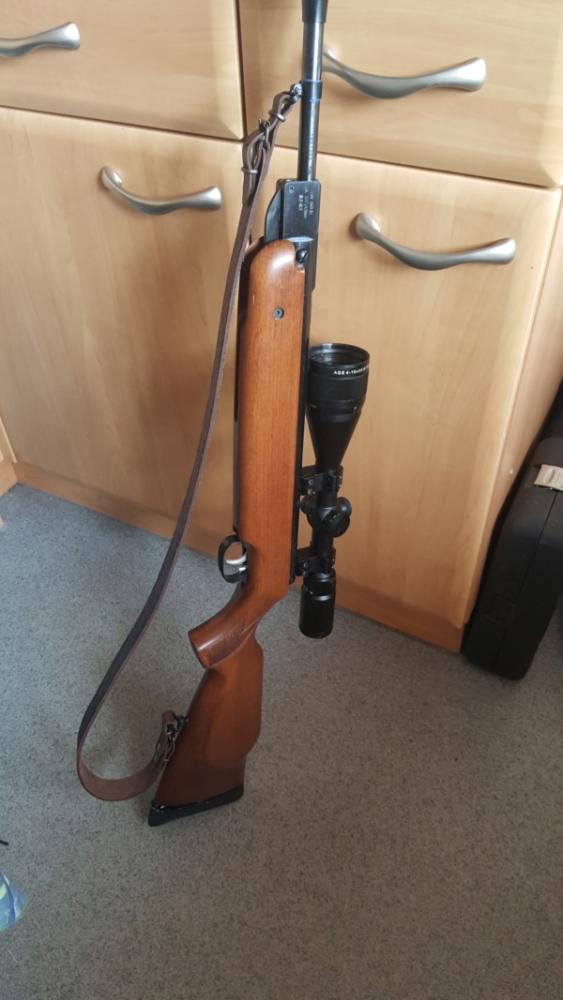

All done the leather sling seemed a little short so I made the hole a bit further up the stock Jon.

I do like the modern nylon slings.

But went with the old style leather 1 as the when the came out that was the type of sling get that was about.

[Jonjon79 13,358]

All done the leather sling seemed a little short so I made the hole a bit further up the stock Jon.

I do like the modern nylon slings.

But went with the old style leather 1 as the when the came out that was the type of sling get that was about.


Nice job mate



That sling does suit the rifle
