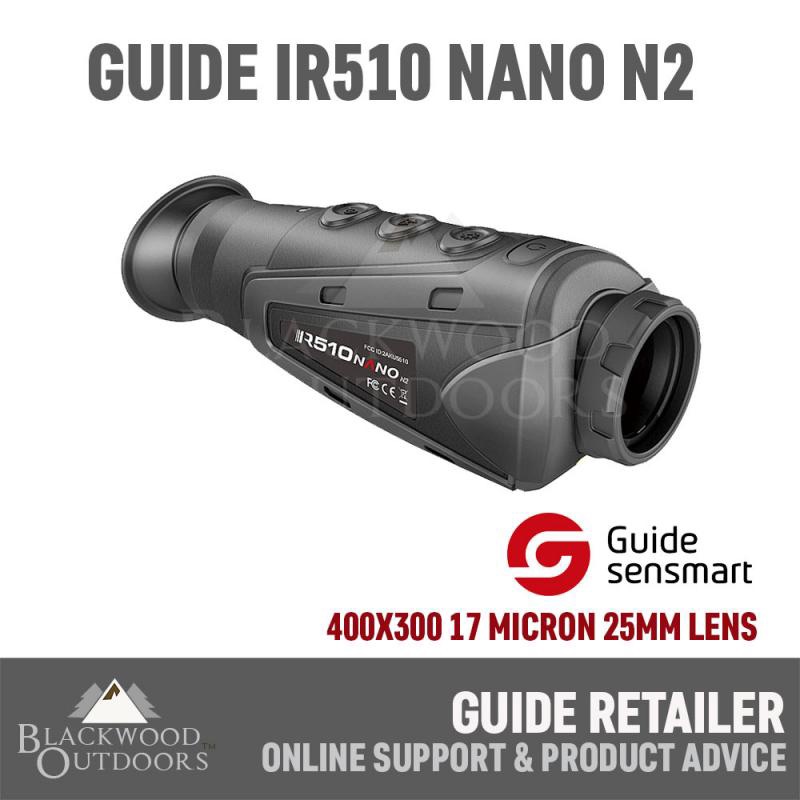

Guide IR510 Nano N2 Thermal Imager

   (0 reviews)

Guide IR510 Nano N2 Thermal Imager

   (0 reviews)

£1,049.95


0 Offers
0 Questions
0 Reviews
425 views

Description

The Guide IR 510 Nano N2 series incorporates thermal technology and advanced algorithms into a compact and easy to use device. Featuring a  400x300 17 micron sensor and LCOS colour display offering a 50 hertz frame rate for a super smooth and crisp view, capable of detecting a human up to 700m. Users can
choose from multiple ocular palettes for a customised experience.

The unit operates silently and is easy to use, featuring four control buttons all of which are placed within the users natural hand-placement for easy reach.

Power is supplied via an internal battery which provides up to 5 hours of operation time and can be recharged via a standard USB cable.



Specifications:

  • Thermal Sensor: 400x300 17µm
  • Spectral Range: 8µm-14µm
  • Detection Range: 700m (Human: 1.8mx0.5m), 1700m (Vehicle: 2.3mx2.3m)
  • Digital Zoom: 2-4x
  • Focus: 25mm (Manual)
  • Dioptre: ±4
  • Field of View: 14.6° x 11.1°
  • Display: 0.2" LCOS Colour
  • Colour Palettes: Black hot, white hot, red hot 1, red hot 2, red hot 3
  • Frame Rate: 50Hz
  • Operating Temperature: -10℃ to 50℃
  • Protection: IP66
  • Drop Rating: 1m
  • Weight: 375g
  • Size: 160x67x62mm
  • Battery: Internal Li-Ion (3.7v, 3200mAh)
  • Operating Time: >5
  • Ports: USB (Charging) & MCX Connector (PAL/NTSC)
  • Adaptor: Standard USB power adaptor (Max 10w)


Additional Functions:

  • Built-In torch
  • Cross cursor
  • Zoom
  • Freeze
  • Charging indicator
  • Active indicator


Includes:

  • Thermal imager
  • Power adapter
  • USB cable
  • Video cable
  • lens cap
  • Wrist strap
  • Shoulder strap
  • Soft drawstring bag
  • User manual
