Cedric 132 Posted July 30, 2014 Report Share Posted July 30, 2014 I bought a second hand HW80 (.177) yesterday to play with, it has a number of problems, not least of which is it looks as though a previous owner has removed the screws with a tin opener ! He also hacked the end of the barrel off to remove the sight dovetails so he could glue a moderator on, present owner had managed to get it off but not all the glue. That's not a problen, I can smooth it off and recrown. However the barrel has some lateral play when closed, enough to be able to wiggle it a bit. Can I cure this by adding extra shim washers or is it more drastic? The piston does not slide easily, the piston seal is a tight fit and takes quite a bit of force to move it in and out. It appears to be the correct size but I've ordered another one. Could the inside where the piston slides need polishing? It tried it on the chorno and it was running at about 9.5 ftlbs, possibly a combination of the piston seal and the breech seal. It appears to had had an OX spring fitted, square section, maybe that's why it jumps like a frightened rabbit when fired ! Can anyone suggest decent components for the rebuild - spring, top hat, spring guide etc.? The trigger is pretty crap as well, even the front adjuster screw is missing but I can fix that OK. One good point, the wood is lovely ! Quote Link to post
gurtwurz 792 Posted July 30, 2014 Report Share Posted July 30, 2014 Get a spring,too hat and spring guide from Sandwell field sports mate, top gear that's made to fit the spring perfectly. No harm in giving the insides a polish from the sounds of it, and a new piston seal too. 80's are built like panzers so with a bit of TLC there's no reason why yours shouldn't be spot on. 2 Quote Link to post
pianoman 3,584 Posted July 31, 2014 Report Share Posted July 31, 2014 Fully concur with Wurz here here. There's got to be something really bad going on with a Weirauch springer internally to render it a useless write-off. I have a Titan spring fitted in mine which is on ticket, but, you can get Titan springs for sub-12 ft/lbs performance as in my HW77 .22. TW. Chambers are a mine of spares for your HW80. Look them up on the net. In my experience these Titans are superb springs for a Weihrauch rifle. Another route, as wurz suggests, is try Sandwell Field Sports/Tony Wall for one of their complete tuning kits. They'll do everything you need and a great service by your HW80. Quote Link to post
mhopton 807 Posted July 31, 2014 Report Share Posted July 31, 2014 Replace barrel pin and shims , ox might of scored the internals corsing the seals to glide rough also check the cocking shoe for ware and the piston rim to see if they have tried to shorten it to make it have more have power ATB mark Quote Link to post
mattybugeye 884 Posted July 31, 2014 Report Share Posted July 31, 2014 Yes agreed with all above good polish up will do the trick same with trigger I had one full of grit and crap good clean in warm soapy water then a generous spray of Brunox and a good wipe and polish all metal to metal contacts will be drastically improved titan round coil main spring nice fitting piston washer and your away. Quote Link to post
thursodog 353 Posted July 31, 2014 Report Share Posted July 31, 2014 Totally agree with all of the above. Pm me if you need anything as I have lots of spares for 80s & 97s. Only thing i aint got the now is a spring guide and .177 barrel. Plenty of everything else. I made shims from shim sheet. No need to add extra shims. The barrel pin takes a bit to tighten up. Every second hand i buy has a wiggly barrel. A pair of home made shims bisley gun grease and a good tighten up then fit the lock nut to hold in place. New piston seals always need to be sized. Don't polish the inside of the cylinder unless its corroded. A good glean with rags and acetone then a very fine film of grease, tiny amount. Quote Link to post
thursodog 353 Posted July 31, 2014 Report Share Posted July 31, 2014 P.s. There is a cracking write up on the Weihrauch owners club in the spring section showing the dismantling, tune up and setting up of the rekord trigger. Chris Quote Link to post
Cedric 132 Posted July 31, 2014 Author Report Share Posted July 31, 2014 Thanks all for the advice. thursdog - I've ordered a new barrel bolt, screws on the old one were pretty chewed up. The shims seem fine, I'll check and make sure the holes in the gun have not become oval before I fit it. I think the washers were missing as well ! Should I find the new piston seal is a bit tight do I just reduce the diameter with some 1200 grit paper? Quote Link to post
thursodog 353 Posted July 31, 2014 Report Share Posted July 31, 2014 Yeah that all seams fine. Its unlikely to be ovalled. I couls sell you a whole trigger if you need one Quote Link to post
Cedric 132 Posted August 1, 2014 Author Report Share Posted August 1, 2014 thursdog - bought a new front adjuster screw for the trigger (it was missing) and now have the trigger just about perfect. Fitted a new piston and breech seal, had to shave down the piston seal to get it to slide but it seems fine. Put the OX spring back in to try it and it's shooting OK, quite a bit of recoil but that could be the OX spring? Sorted the barrel wiggle with a new barrel bolt and a good tighten, the shims are worn and need replacing ASAP. Popped a few pellets off and got about 1" groups at 20 yards, I expect the recoil is not helping. Now I need to sort out the rattling cocking lever, try and take out the rivet and slide fibre shin in. Quote Link to post
mattybugeye 884 Posted August 1, 2014 Report Share Posted August 1, 2014 Yea sack the spring mate but sounds like it's well on its way . Try pop some pics up love springer projects Quote Link to post
Cedric 132 Posted August 1, 2014 Author Report Share Posted August 1, 2014 I'll pop up some pics of my bits and pieces, it's great fun tinkering but quite a learning curve, so many variables. Alter one thing and it affects something else, alter two and you don't know which (or both) made the improvement - or not! Luckily my workshop is in open countyside so I can try them out of the door. Quote Link to post
mattybugeye 884 Posted August 2, 2014 Report Share Posted August 2, 2014 Yea it's great fun mate can't beat it sounds like you are doing a great job Quote Link to post

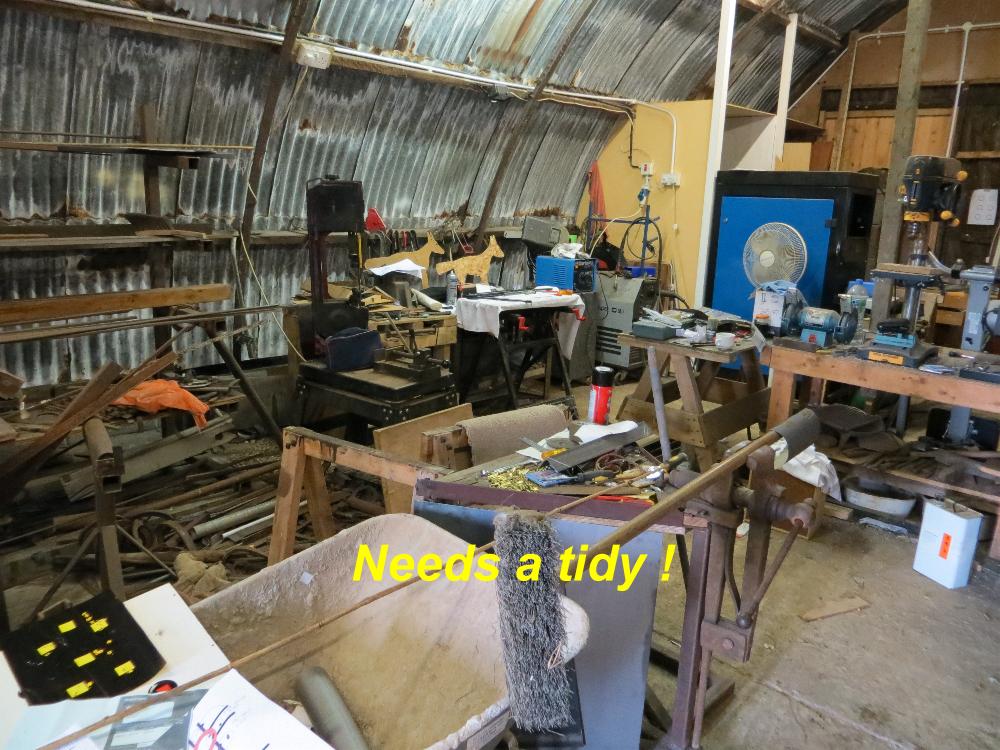

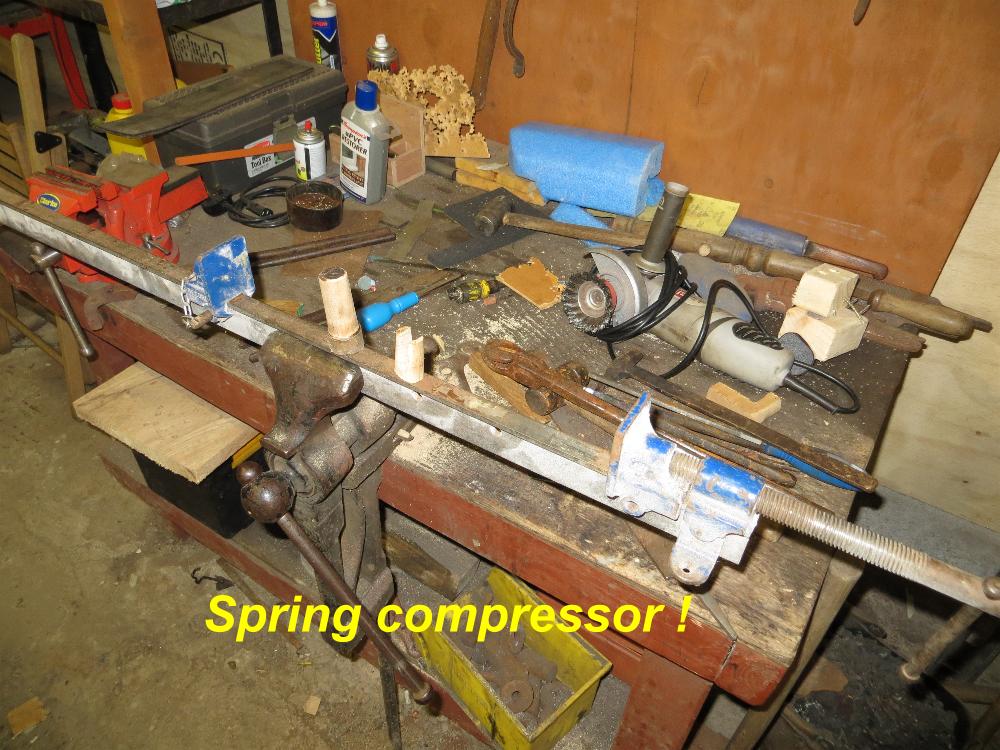

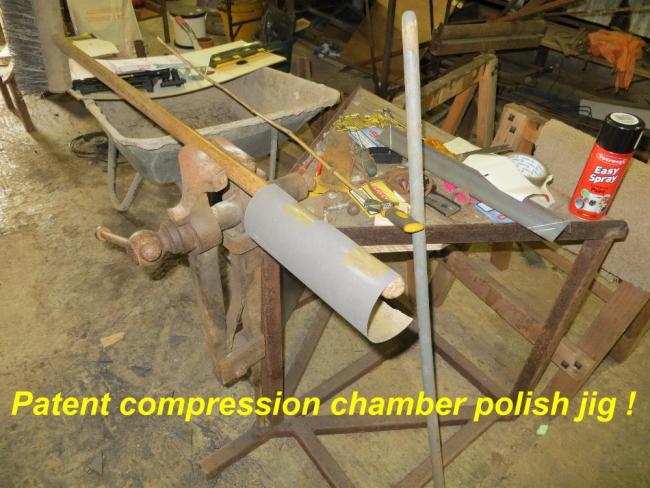

Cedric 132 Posted August 2, 2014 Author Report Share Posted August 2, 2014 Matty - as promiised, a few pics of my setup. Quote Link to post

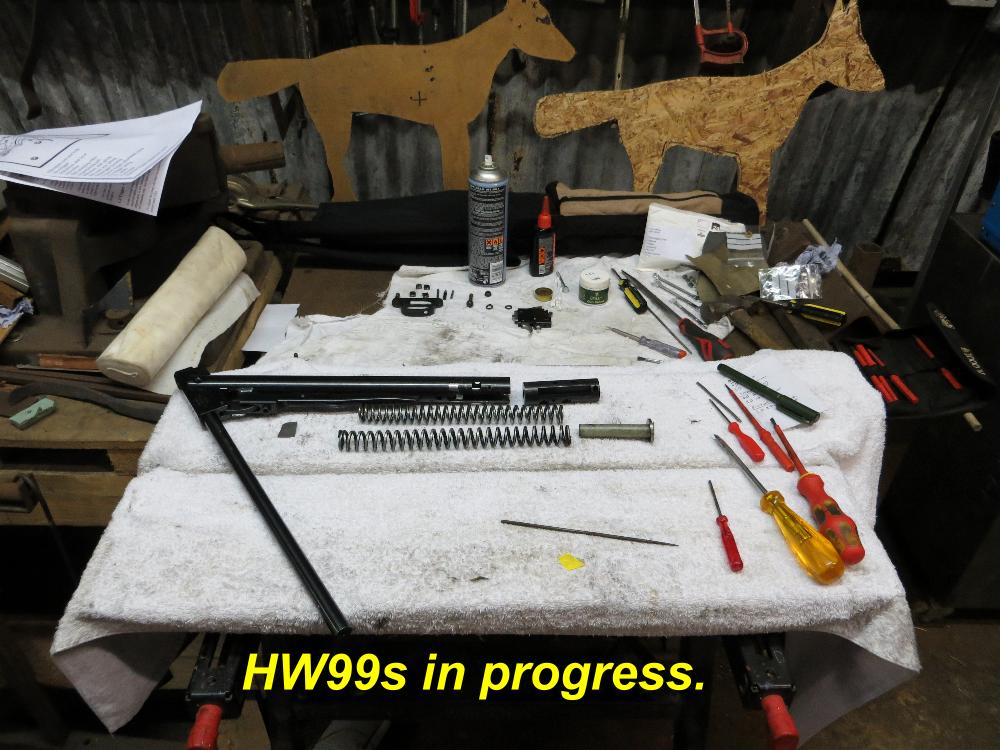

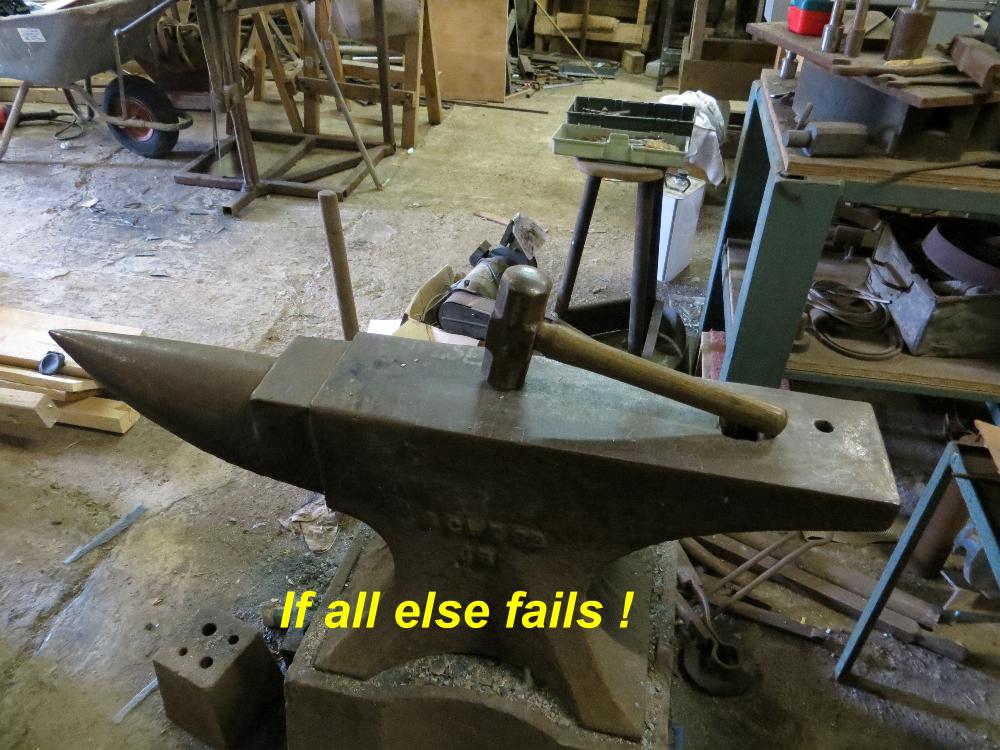

Cedric 132 Posted August 2, 2014 Author Report Share Posted August 2, 2014 A couple more. 3 Quote Link to post
